Product Details

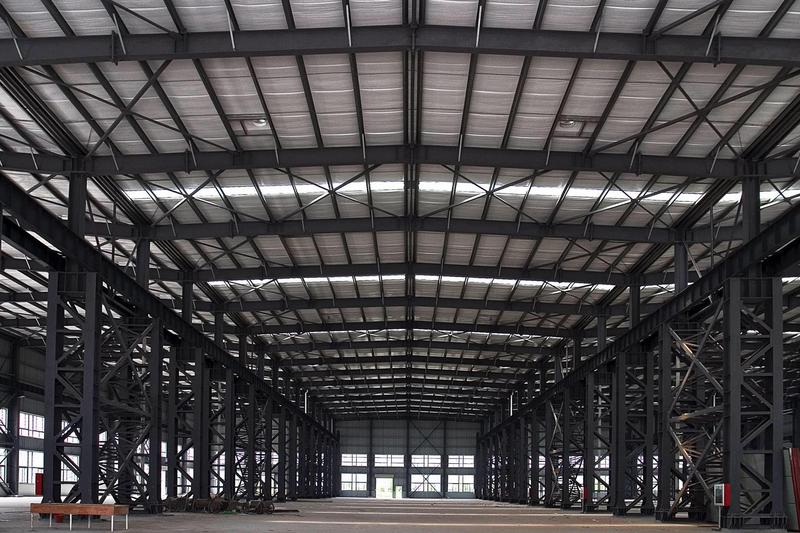

Thank you very much for your interests in our warehouse projects. As you may know, prefabricated steel structure warehouse buildings feature with the following characteristics.

- Cost effective solution
- Fast construction and easy installation
- Long service life of more than 50 years
- Environmentally friendly

We would like to work with your on your steel structure warehouse, factory or workshop projects with customized designs and quotations.

Main Parts

Item Name

Specification

Main Steel Frame

Steel Column

Q235B, Q345B

H shape, Box, Steel pipe, Hot rolled steel

Steel Beam

Q235B, Q345B

H shape, Steel Truss, Hot rolled steel

Supporting

System

Brace

Q235B, Q345B

Steel rod, Steel pipe, Angle steel

Roof Purlin

C or Z shape, Galvanized steel purlin

Wall Purlin

Q235B, Q346B

C or Z shape, Galvanized steel purlin

Roof

Single colorful corrugate steel sheet, 50mm, 75mm, 100mm thick Sandwich panel with EPS, Rock wool, PU, Glass wool, etc.

Wall

Single colorful corrugate steel sheet, 50mm, 75mm, 100mm thick Sandwich panel with EPS, Rock wool, PU, Glass wool, etc.

Accessories

Bolts

Ordinary, High strengthen

Gutter

Galvanized Steel plate, Stainless steel

Windows

Aluminum alloy-Glass, Aluminum alloy-shutter, PVC

Doors

Sliding or Rolling door, Steel plate or sandwich panel.

Downpipes

PVC pipe, Color steel pipe

Edge Cover

Made of color steel sheet thickness 0.5mm

Ventilator

Stainless steel

Crane

Crane from 5 tons to 20 tons


Our excellent design team will design the steel structure building for you. We can quote If you give the following information.
1. Location (where will be built? ) _____country, area
2. Size: Length*width*height _____mm*_____mm*_____mm
3. Live load on roof(KN/M2), live load on second floor(KN/M2) if have
3. Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4. Snow load (max. Snow height) _____kn/m2, _____mm
5. Anti-earthquake _____level
6. Brickwall needed or not If yes, 1.2m high or 1.5m high
7. Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels, Corrugated steel sheet with fiber glass wool will be suggested; If not, the Corrugated steel sheet will be ok. The cost of the latter will be much lower than that of the former.
8. Door quantity & size _____units, _____(width)mm*_____(height)mm
9. Window quanity & size _____units, _____(width)mm*_____(height)mm
10. Crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m
11. Skylight belt, ventilator and any other accessories if needed.


Contact: Chandler Liu; Email: info@toohotcn.com; Whatsapp: +8615053182936
